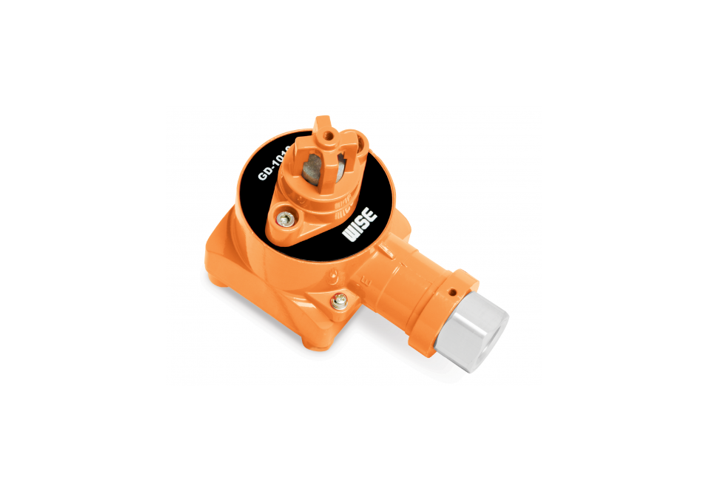

GD-1010
가연성 가스검지기
FEATURES
- 내압 방폭 구조 가연성 가스검지기 (Ex d IIB+H2 T6)
- 간편하고 경제적인 설치 및 쉬운 사용
- 빠른 응답 시간
- 접촉연소방식 센서 (0 to 100%LEL)
SPECIFICATION
| Model | GD-1010 |
| Measuring gas | Combustible gas |
| Measuring range | 0 to 100% LEL |
| Detection principle | Catalytic combustion |
| Sampling | Diffusion |
| Heating current | 295mA |
| Output signal | mV signal |
| Explosion proof | Ex d IIB + H2 T6 |
| Detector housing | Aluminum diecasting |
| Sensor housing | SUS 316 |
| Dimension | 70(W)×112(H)×110(D) |
| Cable | CVVS 1.5SQ, 3wire or 4wire |
| Cable entry | 3/4" PF |
| Response time | Less than 15 seconds at T90 |
| Zero / span drift | ±2% |
| Accuracy | ±2% |
| Expected life | 36 to 60 month |
| Operating temp. | -20℃ to 50℃ |
Option

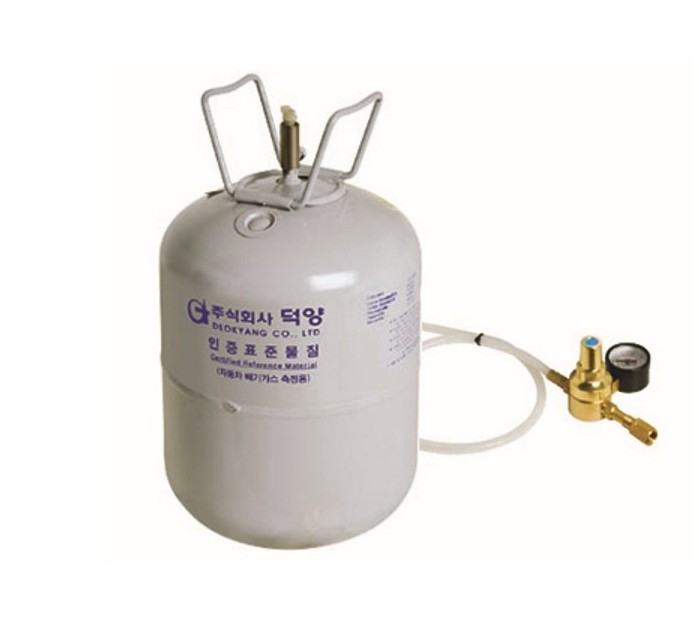

Calibration Kits

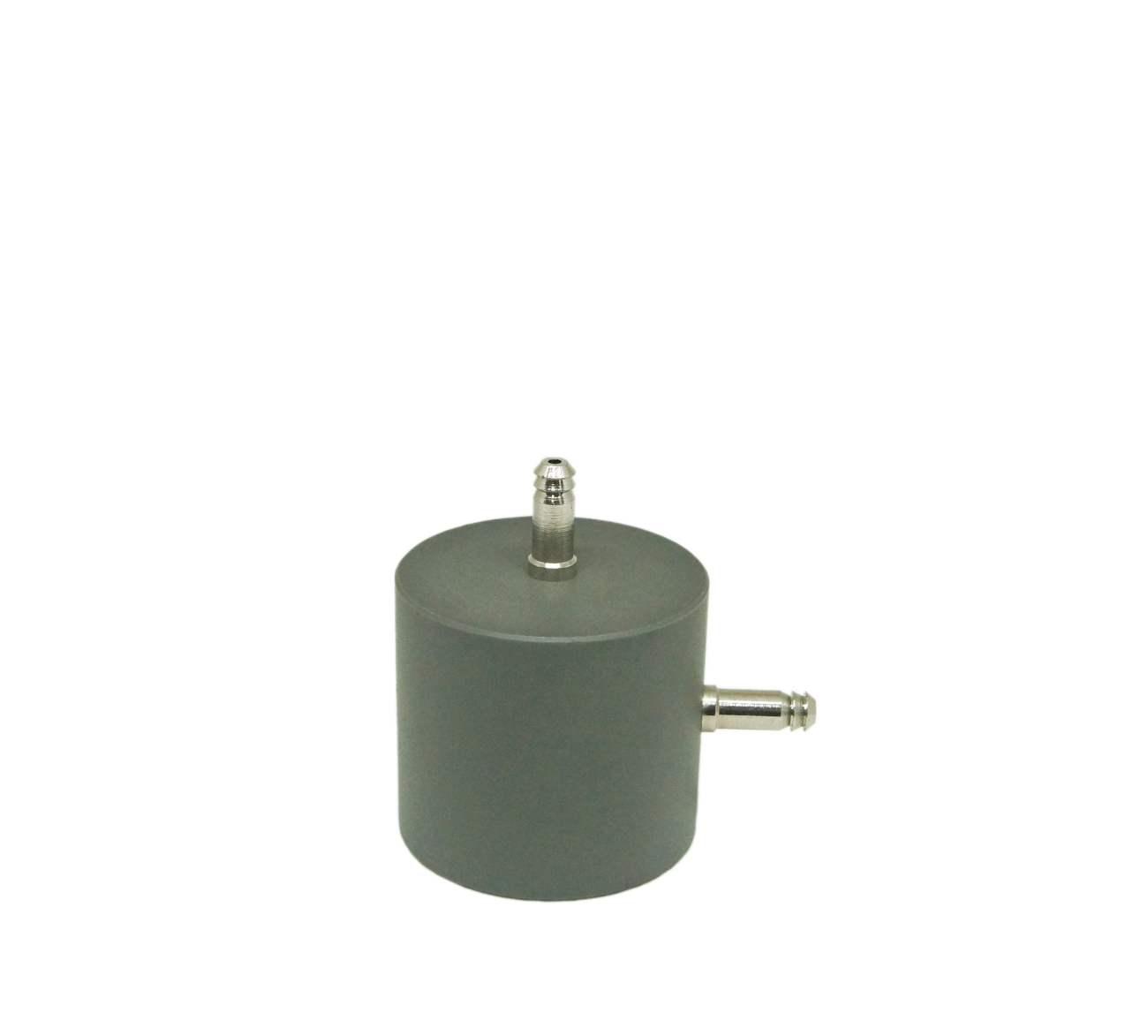

Adaptor

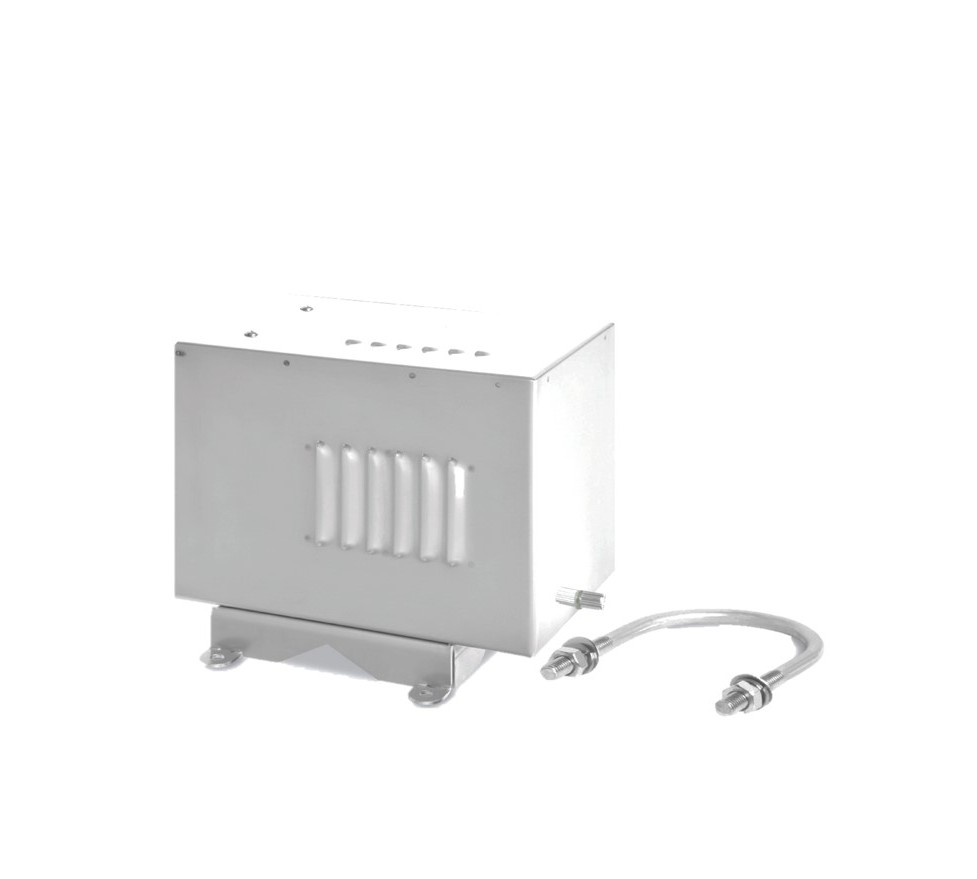

weather proof cover & u-bolt
