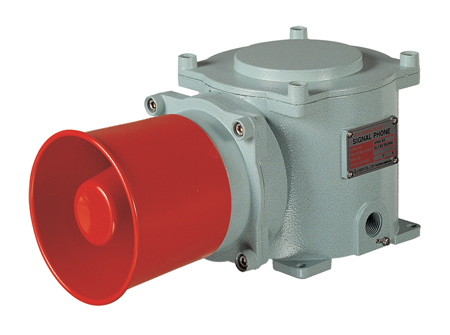

Horn
- Suitable for warning at places having the risk of inflammatory explosion like petrochemical plants, crude oil carriers and chemical factories
- Possible to control volume level by using the built-in volume controller
- Having 5 built-in special warning sounds for vessel
- Body standard color : MUNSELL NO. 7.5BG 7/2
- Horn housing standard color : RED
- Material : Body-DIECAST Al, Horn housing-SUS316L
- Certificate : KOSHA, KR, KIMM, ABS, ATEX, NEPSI, CCS
- Protection class : KIMM, KR - Exd IICT6, IP66 ATEX - Ⅱ 2G Exd IICT6, IP66
KOSHA - Exd IIB +H2
NEPSI - ExdⅡCT6, IP66
SPECIFICATION
| MODEL | Built-in sound | dB/m (MAX) | Rated Voltage | Voltage / Current | Weight | |
| SPNA | WS | 5 Warning sounds | 118dB | DC 12V DC 24V AC 110V AC 220V |
DC 12V / 2.211A DC 24V / 1.022A AC 110V / 0.226A AC 220V / 0.113A |
DC : 4.32kg AC : 4.46kg |
| WP | 0.111A5 SP Warning sounds | |||||
| WM | 5 Melodies | |||||
| WA | 5 Alarms | 115dB | ||||
| WV | 3 Voice signals | 113dB | ||||
