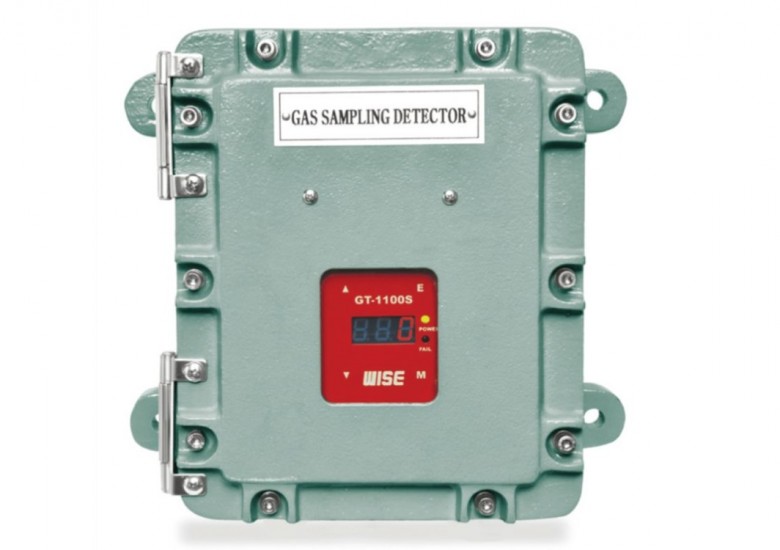

GT(X)-1100S
Suction & local display type combustible/Toxic /Oxygen gas detector
![GT(X)-1100S](/uploads/peog1410002/202103/4ec1d3b44a2a76c6727c1473f9b009dc_crop.jpg)
FEATURES
- Local 3 1/2 digit or 4 digit FND display
- Easy maintenance and calibration
- Linear DC 4 to 20mA output can be connected to various kinds of receivers
- Explosion proof housing (Ex d IIB+H2 T6)
- One conduit port are offered with 1/2" or 3/4" NPT (PF)
- Applied the state of the art technology provides excellent stability
- HART/RS-485 communication (Option)
- Relay alarm contect (Option)
SPECIFICATION
Model | GT(X)-1100S | ||
Measuring gas | Combustible gas | Toxic gas | Oxygen gas |
Measuring range | %LEL | ppm | Vol. % |
Detection principle | Catalytic combustion | Electro chemical | Galvanic cell |
Display | 4 digit FND | ||
Sampling | Suction | ||
Power | 18 to 30V DC | ||
Power consumption | 8.2W (342mA) | ||
Output signal | 4 to 20mA DC | ||
Load impedance | 600Ω | ||
Local calibration | Yes | ||
Explosion proof | Ex d IIB+H2 T6 IP65 | ||
Detector housing | Aluminum diecasting | ||
Dimension | 182(W) x 220(H) x 135(D) | ||
Cable | CVVS 1.5SQ, 3wire | ||
Zero / span drift | ±2% | ||
Accuracy | ±3% | ||
Expected life | 36 to 60 month | ||
Operating temp. | -20℃ to 50℃ | ||
Pump input | 24V DC (Internal wiring) | ||
Pump type | Diaphragm | ||
Pump flow rate | Approx. 0.5L / minute |
