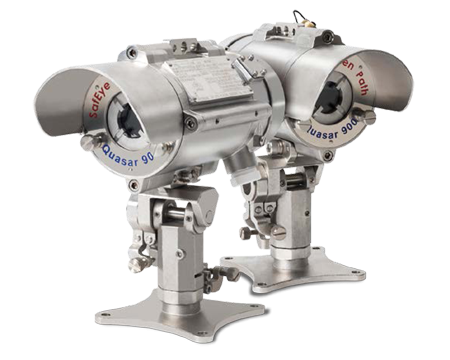

Open Path gas detector
- Measured up to a distance of 200 meters
- Continuous operation in extreme and harsh environmental, such as fog, snow, rain, vibration, and solar radiation.
- Heated optics to improve performance in icing, condensation and snow conditions
- High Sensitivity and fast response to Hydrocarbon gases, such as methane, ethylene, propane, ethane, butane
- Simultaneous detection of C1-C8 flammable gases
- Solar blind and immune to industrial environments
SPECIFICATION
| Detection range | Model | 901 | 902 | 903 | 904 |
| meters | 7-20m | 15-40m | 35-100m | 80-200m |
| Detected gas | C1 - C8 |
| Response time | 3sec |
| sensitivity range | 0.5LEL.m methane and propane |
| 0.8LEL.m ethylene | |
| Spectral response | 2.0 - 3.0 ㎛ |
| Displacement / Misalignment tolerance | 0.5° |
| Temperature range | -55℃ - 65℃ |
| Humidity | up to 95%Rh, non-condensation |
| Heated optics | to eliminate condensation and icing on the window |
| Warranty | Safety system 3years |
| Flash source bulb 10years | |
| Power supply | 24Vdc normal (18 0 32VDC) |
| Power consumption | Detector 250mA (300mA peak) |
| Source 250mA (300mA peck) | |
| Warm up time 30 sec for transmitter and receiver | |
| Electrical connection | 2 x 3/4"NPT or 2 x M25 x 1.5mm ISO |
| Output | 4-20mA |
| RS-485 MODBUS | |
| HART | |
| Visual status indicator | 3clolr LED (Green-power on, yellow-fault, Red-alarm) |
| Hazardous Area Approval | ATEX /IECEx, FM |
| Reliability | SIL2 TUV |
| Water and dust tight | IP66&67 |
