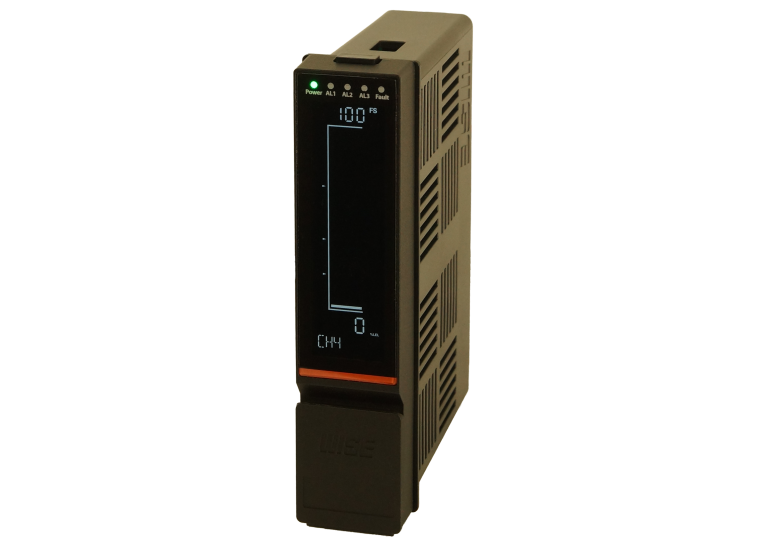

GM-3000
Gas alarm Indicator
FEATURESRS
- Microprocessor applied
- Sensor type or 4~20mA input selectable
- 3 color LCD bar with digital display
- Easy alarm setup (AL1, AL2, AL3)
- Linear retransmission
- Use with AM-3000
SPECIFICATION
| Model | GM-3000 | ||
| Measuring range | %LEL | ppm | Vol.% |
| Display | Bar graphic LCD Display, Power, Fault, Aalarm(3state) | ||
| Power consumption | 2.6W (24V DC/110mA) | ||
| Poerating power | 18 to 30V DC (24V DC / Fuse 1A) | ||
| Output input | 4~20mA DC Linear / Max. | ||
| Load impedance | 600Ω | ||
| Contact input | Transmitter (4~20mA) or Sensor Type | ||
| Dimension | 35.97(W) X 142.97(H) X 99(D) | ||
| Weight | 240g | ||
| Operating temperature | 0℃ to 50℃ | ||
| Alarm setting | 3stage alarm setting | ||
| Alarm output | Alarm(3state) Fault, ext. Buzzer / Contact capacity : AC 250V, 2A |
||
| Installation method | Single rack (Flush Mounting) / Multi unit rack |
||
