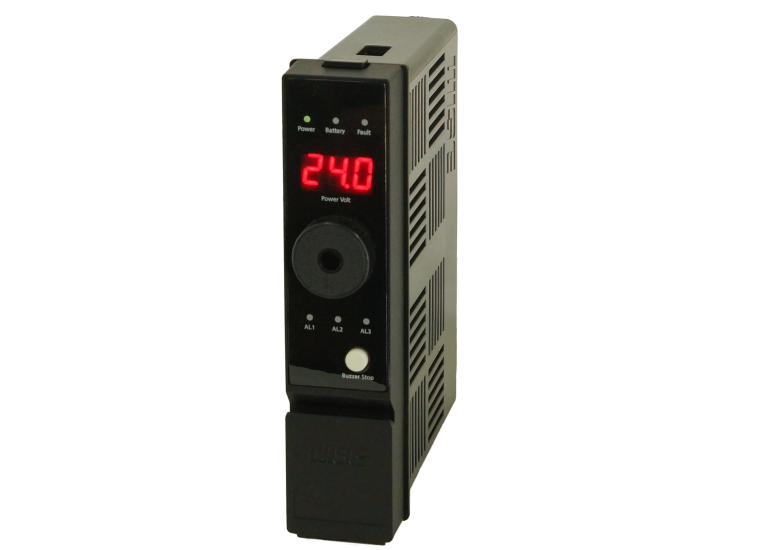

AM-3000
Common buzzer unit
FEATURES
- Use with gas indicator GM-3000
- 3 Point output Alarm (AL1, AL2, AL3)
- RS 485 communication
SPECIFICATION
| Model | AM-3000 |
| Display | Power, Battery, Fault, Aalarm(3state) LED |
| Power | 18 to 30V DC / Fuse 1A |
| Power consumption | 3.3W(138mA) |
| Buzzer sound | 90dB at 1m |
| Reset switch | Self reset |
| Operation S/W | Front : Reset / Buzzer Stop button Inside the cover : Up, Down, Menu, Set button |
| Contact input | Buzzer stop and alarm reset input (*each 1Point) / Dry contact |
| Dimension | 35.97(W)×142.97(H)×99(D) |
| Weight | 220g |
| Operating temp. | 0℃ to 50℃ |
| Alarm output | Alarm(3state) Fault, ext. Buzzer / Contact capacity : AC 250V, 2A |
| installation method | Single rack (Flush Mounting) / Multi unit rack |
