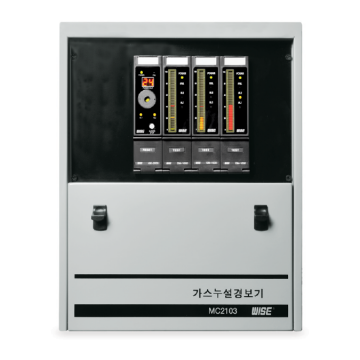

GM-1000
Bar graph type indicator
FEATURES
- 3 color changeable LED bar graph
- Normal : Green, 1st AL: Yellow, 2nd AL: Red
- Self diagnostics functions
- Easy alarm set point adjustment
- It has a microprocessor
- Selectable the kinds of detector by jumper pin
- Linear DC 4 to 20mA output retransmission
- Two alarm levels (High alarm, High-high alarm)
SPECIFICATION
| Model | GM-1000 | ||
| Measuring range | %LEL | ppm | Vol.% |
| Display | 51 segment bar graphic, Power, fail, AL1 and AL2 / 3 color changeable LED bar graphic |
||
| Power consumption | 4W (180mA) / Fuse 1A | ||
| Retransmission | 4-20mA DC Linear | ||
| Load impedance | 600Ω | ||
| Mounting | Panel flush mounting | ||
| Sensor input | Selectable | ||
| Dimension | 37(W)×145(H)×195(D) | ||
| Weight | 670g | ||
| Operating temperature | 0℃ to 50℃ | ||
| Alarm set point | Two (high, high high) | ||
| Alarm set valve | 0 to F.S programmable / 2% step | ||
| Alarm output | AL1, AL2, fail: 3 X SPDT / Contact capacity : 250V, 10A |
||
