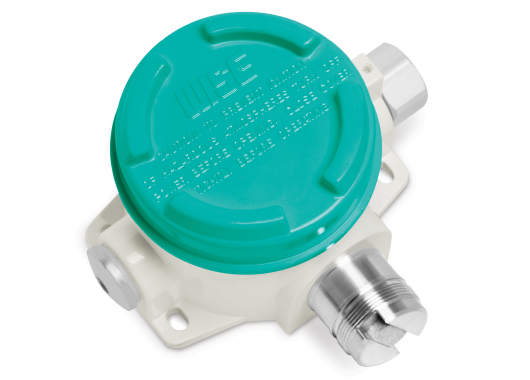

GT-1010
Transmitter type combustible gas detector
FEATURES
- Easy maintenance and calibration
- Linear 4 to 20mA DC output can be connected to various kinds of receivers.
- Suitable for use in a wide variety of gas detection applications.
- Explosion proof housing (Ex d IIC T6)
- Two conduit port are offered with 1/2" or 3/4" NPT(PF)
- Fast response
- The state of the art technology provides excellent stability
SPECIFICATION
| Model | GT-1010 |
| Measuring gas | Combustible gas |
| Measuring range | 0 to 100% LEL |
| Detection principle | Catalytic combustion |
| Display | None |
| Sampling | Diffusion |
| Power | 18 to 30V DC |
| Power consumption | 2.4W (100mA) |
| Output signal | 4 to 20mA DC |
| Load impedance | 600Ω |
| Local calibration | Yes |
| Explosion proof | Ex d IIC T6 IP65 |
| Detector housing | Aluminum diecasting |
| Sensor housing | SUS 316 |
| Dimension | 132(W)×148.5(H)×95~98(D) |
| Cable | CVVS 1.5SQ, 3wire |
| Cable entry | 3/4" PF |
| Response time | Less than 15 seconds at T90 |
| Zero / span drift | ±2% |
| Accuracy | ±2% |
| Expected life | 36 to 60 month |
| Operating temp. | -20℃ to 50℃ |
ACCESSORIES

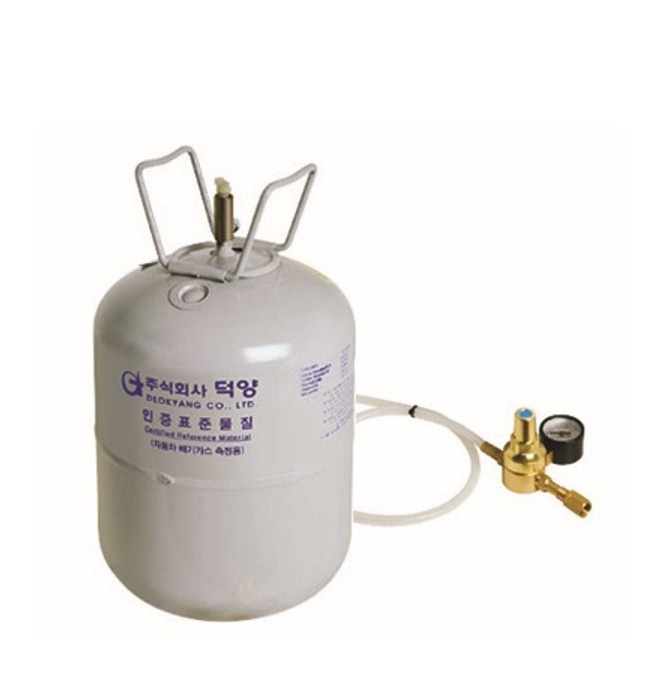

Calibration Kits

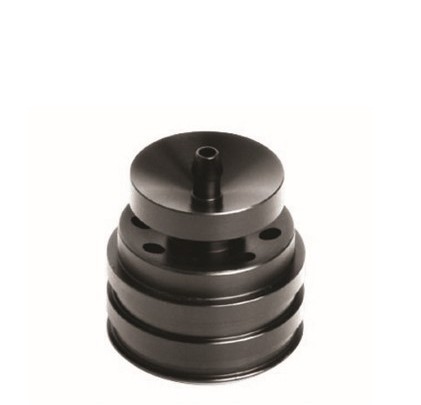

Adaptor & Splash guard

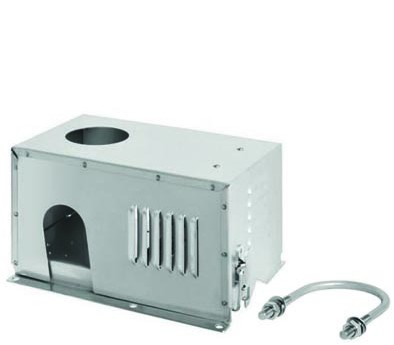

Weather proof cover&u-bolt
