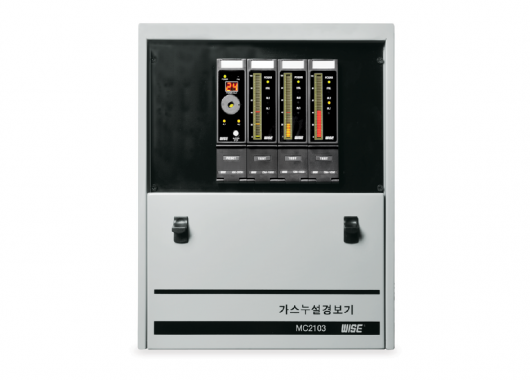

MC-2100 Series
Multi unit case
FEATURES
- Integrated all into a rack and compact designed
- Easy mounting and connecting with detectors
- Applied the Individual power switch for the each Indication card
- Various kinds for 3, 6, 9, 12 and 15 channels available
- Usability various electric power AC110V or 220V, 50/60Hz available
SPECIFICATION
| Model | MC-2103 | MC-2106 | MC-2109 | MC-2112 | MC-2115 |
| Channel | 3 channel | 6 channel | 9 channel | 12 channel | 15 channel |
| Size | Refer to the dimension drawing | ||||
| Mounting | Wall or flush mounting | ||||
| Power | AC 110V + / -10% or AC 220V + / -10%, 50 / 60Hz | ||||
| Main switch | ON/OFF toggle switch | ||||
| Main fuse | Replacement glass fuse | ||||
| Connection | Front side | ||||
| Cable entry | Bottom | ||||
| Materials | SPC1.2t | ||||
| Color | Munsell no. 5Y 7 / 1 | ||||
TECHNICAL CHARACTERISTICS
| Channel | Width | Height | Depth |
| 3 channel | 300(280) | 374(335) | 180(155) |
| 6 channel | 408(388) | ||
| 9 channel | 516(496) | ||
| 12 channel | 624(604) | ||
| 15 channel | 732(712) |
